Short answer: before ordering a large leg press and hack squat combination for a home gym, check three different fits: its assembled footprint, the movement and access space you need around it, and the route from delivery point to room. The Waxman listing gives assembled dimensions of 77.5 inches long, 38.3 inches wide, and 57.4 inches high. Those numbers describe the machine, not the complete space required to bring it in, assemble it, load plates, or exercise. Measure your own room and delivery route, then confirm the current assembly instructions with the seller.

1. Start with the listed assembled dimensions

Write the listed length and width on paper before moving furniture. Measure the proposed room in more than one place: baseboards, a closet door, a radiator, a window ledge, or a sloped ceiling can reduce usable space. Mark a rectangle 77.5 by 38.3 inches on the floor with painter’s tape. This is a planning outline based on the product page, not a guarantee that every part stays inside that rectangle during use.

The listed height is 57.4 inches. Check ceiling height at the exact location, especially under a beam, fan, or low ceiling. Also account for the height of anything the assembly instructions require above or behind the frame. The product page does not provide an operating-clearance diagram, so do not assume the footprint alone is sufficient.

2. Add space for movement, loading, and adjustment

Stand in the taped outline and walk around the sides you expect to use. Think through where you will approach the seat, change position between the two exercise modes, reach the controls or safety stops, and load or remove plates. Keep doors, hallways, and the room’s normal exit route usable. Leave enough working space for your own movement rather than squeezing the machine against a wall because the rectangle technically fits.

Use the seller’s assembly manual or support team to confirm the required clearances and which side needs access. The listing describes a leg press and hack squat combination and mentions adjustable lockout positions and three-level safety limiters. That description does not tell you the safe setup for your body, flooring, or room. Follow the current manual and ask a qualified installer or the seller if the instructions do not address your layout.

3. Measure the entire delivery path

A machine can fit in the destination room and still be difficult to get there. Measure the narrowest doorway, hallway turn, stair landing, and any elevator opening on the route. Include door handles and trim in the clear width. Sketch tight turns from above; a long package needs turning space beyond its narrowest dimension.

The listing says the machine ships in three packages that may not arrive together and gives a total gross shipment weight of 230 pounds. It does not state each carton’s dimensions or weight. Ask the seller or carrier for package measurements, delivery location, and whether the service includes moving cartons inside. Plan for the actual shipment information; do not divide the total weight evenly or assume one person can move a carton safely.

4. Make a room plan before holiday guests arrive

If a spare room doubles as a guest room during the fall and winter holidays, decide in advance whether the equipment will remain in place or whether the room must serve another purpose. The listed unit is not described as foldable. Treat relocation after assembly as a separate logistics question and ask the seller what disassembly and reassembly require. Do not count on sliding a heavy frame across finished flooring.

Draw a simple plan with the machine outline, door swing, bed or storage furniture, and a clear walking route. If the room is shared, agree on where loose plates and attachments will be stored; the page mentions storage posts, but you should verify the included configuration and capacity with the seller. Keep equipment and packages out of guest egress paths.

5. Confirm the floor and assembly conditions

Before purchase, check your building or lease rules for heavy equipment and ask the manufacturer or a qualified professional whether the floor and installation location are appropriate. The product page’s capacity claim is not a floor-load rating, and it does not establish what a particular room can support. Do not use that number to judge a floor’s structural suitability.

Confirm whether assembly needs two or more people, special tools, or a clear staging area. The listing’s total shipment weight is substantial, but it does not specify the lifting method. Follow the carrier and assembly instructions, and use professional help when needed. Keep children and visitors away from the assembly area and any unsecured parts.

A quick go / no-go checklist

• The taped assembled footprint leaves room to approach and use the equipment.
• Ceiling height and overhead obstructions have been checked at the exact location.
• Doorways, turns, stairs, and elevator access are measured against package dimensions supplied by the seller.
• The delivery plan accounts for three parcels that may arrive separately and the listed 230-pound gross total.
• Floor suitability, assembly requirements, and required operating clearances have been confirmed from appropriate instructions or qualified help.
• Seasonal guest-room use and storage have a practical plan.

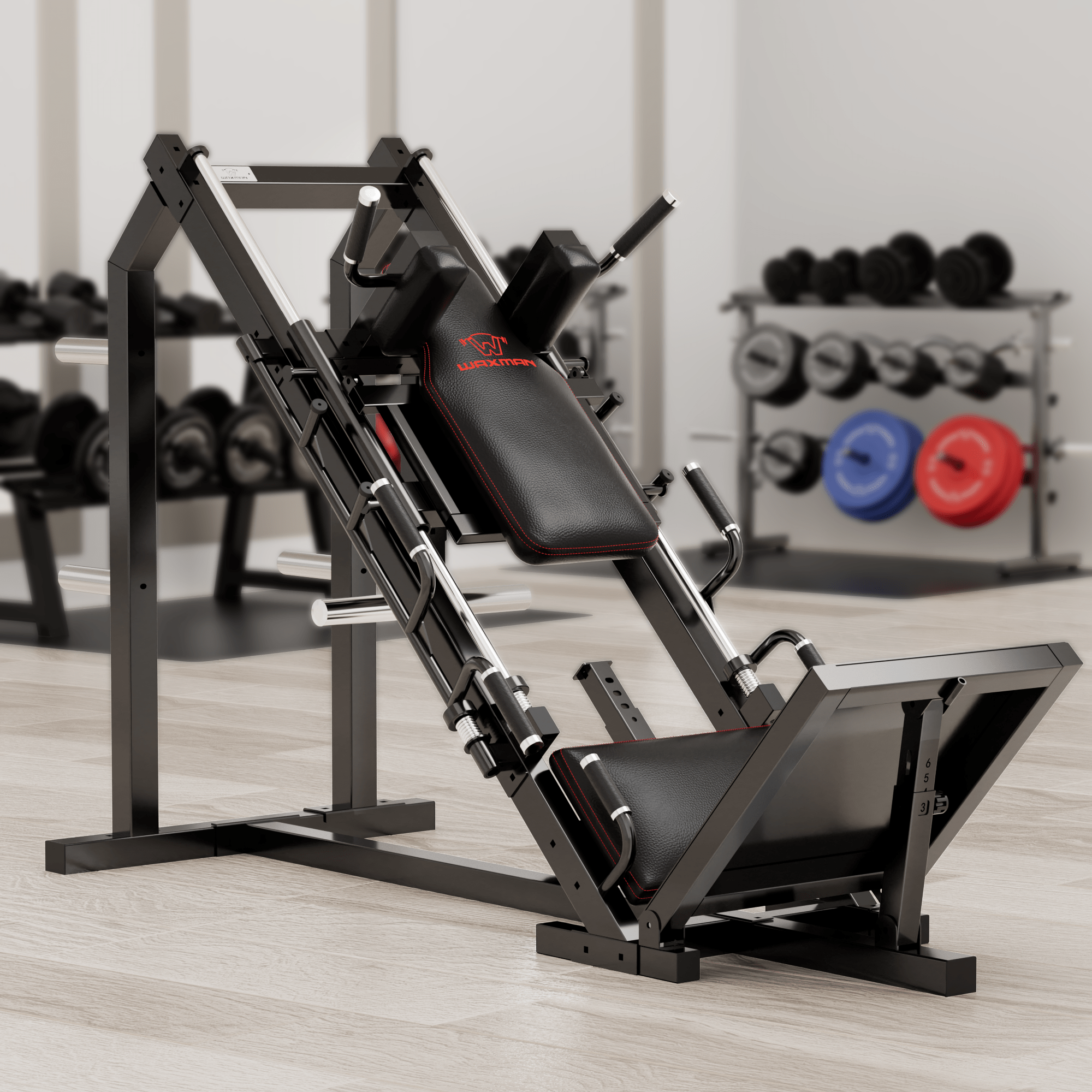

If any critical measurement or delivery detail is unknown, pause the order and ask for it. The current product page identifies the Waxman Leg Press Hack Squat Machine, with a displayed price of $799 USD when checked October 5, 2026. Product details and price can change, so verify them with the seller before buying.

Product listing facts and current displayed price checked October 5, 2026. The cover is an AI-generated illustration. This article is informational and does not replace the product manual, delivery instructions, or professional advice about building structure.
