How Much Room Should You Leave Around a Home Smith Machine?

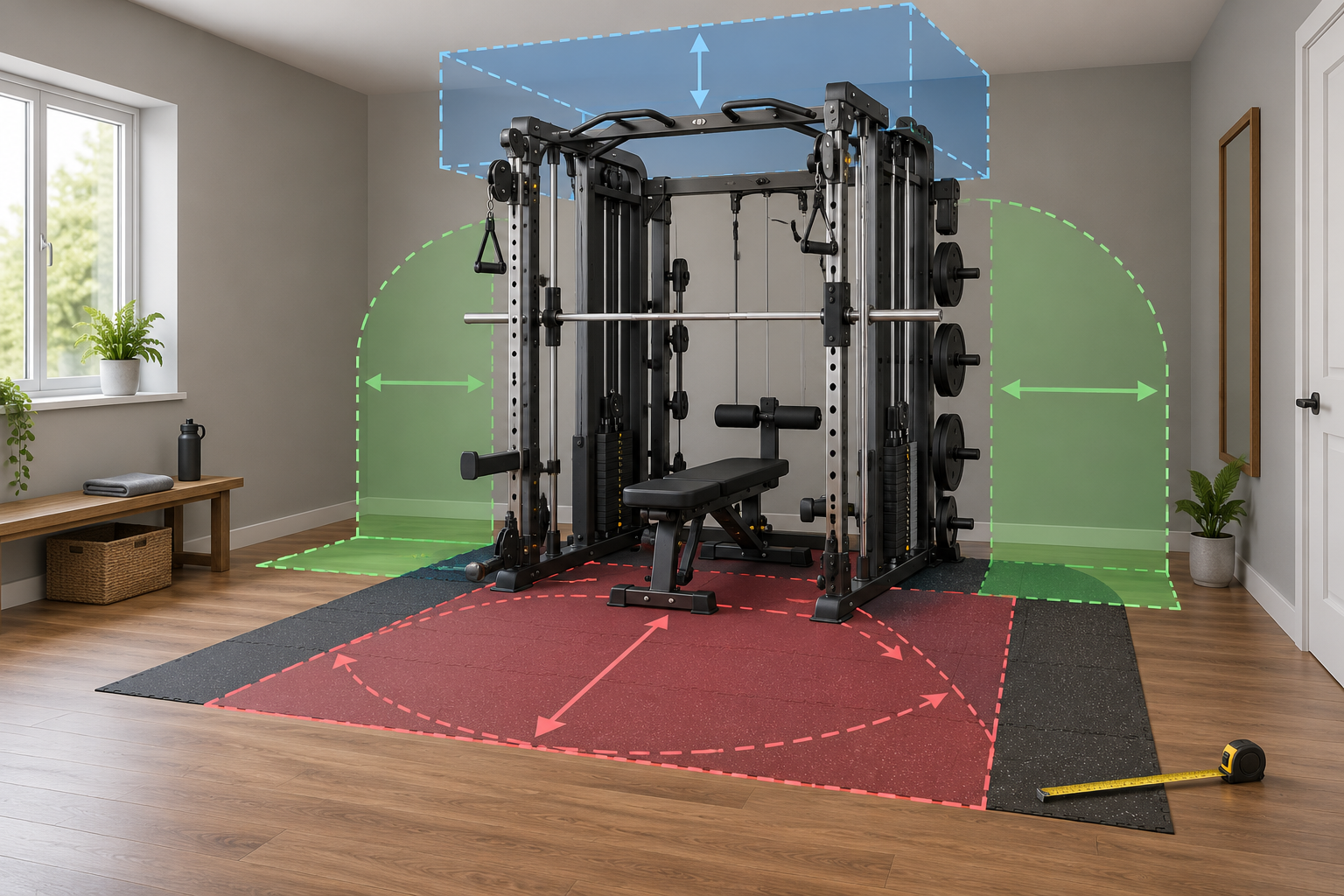

Cover illustration: AI-generated room-planning illustration. Its colored zones are conceptual, not measured clearances or a product photograph.

Short answer: Start with the exact model’s manual, then map the full path of each exercise and attachment in the room. The machine’s footprint alone does not tell you whether a bench, bar, cable handle, weight plate, or person will have enough space to move. There is no universal clearance number that applies to every machine, exercise, and room; use the manufacturer’s instructions and check the actual setup before training.

Fall is a common time to move workouts indoors or rearrange a spare room. Before placing a large rack against a wall, sketch the stations you plan to use and test the space with the equipment unloaded. A little planning can reveal blocked doors, low fixtures, or a cable path that crosses a walkway before the machine is assembled.

Measure more than the frame

Record the machine’s assembled height, length, and width from the listing or manual, and compare those measurements with the room. Then note anything that changes the usable area: baseboards, outlets, windows, sloped ceilings, ceiling lights, doors, closet access, and heating or ventilation equipment. Leave access to emergency exits and do not place equipment where it blocks a doorway or required route.

For example, Waxman’s WAX-SM-S02 listing gives assembled dimensions of 87.2 inches high by 71 inches long by 48 inches wide. Those are the listed dimensions of the assembled unit, not a complete room plan and not a guarantee that a particular movement will fit. Confirm the exact dimensions for the model and configuration you are considering, because listings and products can change.

Trace the movement for each station

Make a short list of the exercises you expect to do, then check each one separately. A Smith-machine squat, a bench press, a cable fly, and a lat pulldown use different areas. The aim is not to guess a standard number of inches; it is to identify whether the planned movement can be completed without a wall, stored item, doorway, or another person entering the path.

• Bar or Smith bar: Check the full travel path and the position where you will mount or dismount it. Follow the manual for use of catches, safeties, and stops.
• Bench: Mark where the bench will sit for each exercise, including room to approach it and reposition it without colliding with the uprights.
• Cables: Trace the handle and cable path through the planned range of motion. Check that the line will not snag on furniture or cross a normal walking route.
• Attachments: Account for the T-bar, dip handles, footboard, or other accessories only if they are included with your exact configuration. Their storage and use can change the space you need.
• Weights and storage: Leave a practical place to load or unload plates and put accessories away. Do not store loose plates where someone must step around them to enter or leave the room.

Do a dry layout before assembly

Use painter’s tape to mark the listed footprint on the floor. Add temporary outlines for the bench and the movement paths you have checked. This is a planning aid, not a substitute for following the manual or verifying the assembled equipment. Walk the route into and out of the room, open doors fully, and check that another household member can pass without crossing the exercise area.

If the machine is not yet delivered, use the listing dimensions only as a first screen. Ask the seller for package dimensions, delivery requirements, and any room-clearance guidance for the exact model. Carton dimensions are different from assembled dimensions. For upstairs rooms, uncertain floors, or anchoring questions, ask the manufacturer or a qualified building professional rather than inferring structural capacity from the machine’s advertised weight rating.

Check the ceiling and surroundings

Measure to the lowest obstruction above the intended location, not just the room’s nominal ceiling height. Consider overhead bars, pull-up use, attachments, and the height of the person using the station. The product’s listed height may not describe every movement or accessory clearance. If the manual does not state a ceiling requirement for your intended exercise, contact the manufacturer with the model number and setup details.

Look for nearby mirrors, windows, shelves, hanging lights, fans, cords, and fragile objects. Secure or remove anything that could be struck during normal movement. Keep children and pets out of the exercise area while equipment is in use, and keep the exit route clear. These are practical layout checks, not a certified safety inspection.

Recheck after the machine is assembled

Before adding weight, compare the assembled position with the manual and your floor plan. Confirm the equipment is level and installed as directed. With no load, move each attachment through its intended range and look for interference, snagging, or a need to step over an obstruction. If anything differs from the manual or the machine feels unstable, stop and contact the manufacturer; do not solve a fit problem by changing assembly or anchoring instructions.

Revisit the layout when you add a bench or change exercises. A setup that works for one station may not work for another. Keep a clear route to the door, return accessories to their designated storage, and avoid treating a drawn floor zone as a manufacturer-approved clearance.

The Waxman WAX-SM-S02 Smith Machine and Home Gym System listing describes a Smith machine, squat rack, cable crossover, and lat-pull system. It lists assembled dimensions of 87.2 × 71 × 48 inches. Verify the current model details and instructions before planning your room.

Sources: Waxman WAX-SM-S02 product listing (model, listed assembled dimensions, features, and current displayed price checked October 17, 2026); American College of Sports Medicine, Selecting and Effectively Using Free Weights (general planning and storage considerations; not a machine clearance standard). No product test, human review, or safety certification is claimed.
